Thinking of upgrading or replacing your car's weather shields? You've come to the right place. Removing old, sun-damaged shields can seem risky but with the right technique, it's a simple, damage-free job.
Here is your definitive, step-by-step guide to safely removing 3M taped weather shields without peeling paint or leaving messy residue. It applies to virtually all modern vehicles, from the Toyota HiLux and Ford Ranger utes to popular SUVs and sedans. Following these steps ensures paint, trim and seals remain intact.
Tools & Materials You'll Need
✅ Automotive plastic trim removal tools: Designed to lift edges without scratching paint.
✅ Strong nylon fishing line or braided cord: Used in a sawing motion to separate adhesive tape.
✅ Hair dryer or heat gun (low setting): For softening the strong 3M adhesive.
✅ Automotive adhesive remover: Citrus or solvent-based, safe for exterior trims.
✅ Isopropyl alcohol (IPA): For final residue removal.
✅ Microfibre cloths: For wiping and polishing.
✅ Masking tape (optional): To protect surrounding trim.
All items are widely available from major Australian auto and hardware retailers.
Step 1: Warm the Adhesive for Easier Release
The Critical First Step for Damage-Free Removal
Applying heat is critical for safely removing 3M VHB (Very High Bond) tape. This softens the adhesive, turning it from a hard solid into a pliable gel that separates easily.
✔ Apply heat from the outside of the vehicle directly onto the taped edges of the weather shield.
✔ Hold the hair dryer or heat gun 10 to 15 cm away and move continuously along the edge for 60 to 120 seconds.
✔ Test pliability by gently pressing the shield - it should feel slightly more flexible before prying.
✔ Common Mistake: Avoid excessive, stationary heat, as this can distort the plastic shield or damage the underlying paint/seals.
Step 2: Separate the Shield from the Vehicle Trim
Using Fishing Line or a Plastic Trim Tool
Once the adhesive is warm, you can safely begin separating the shield. Always work slowly and gently to avoid sudden tears in the tape (which can leave stubborn chunks of residue).
✔ Option A (Fishing Line): Thread strong nylon fishing line or braided cord behind the shield and use a sawing motion to cut cleanly through the adhesive tape.

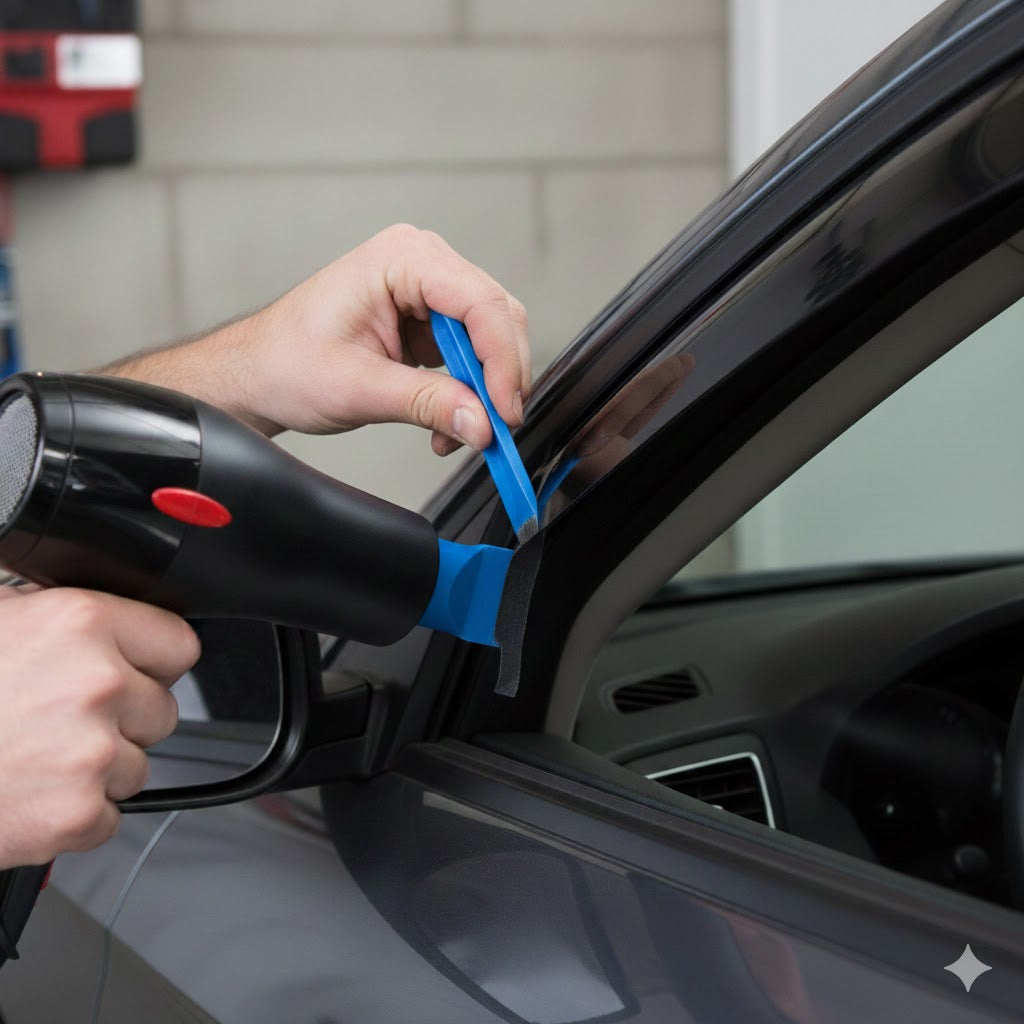

✔ Option B (Plastic Tool): Insert a plastic trim tool under a corner and gently lift the shield while continuously applying heat to the area you are lifting.
⚠️ Safety Warning: Do not use metal tools
Metal scrapers or tools will scratch your paint and window trim. Use only the automotive plastic trim tools to safely pry the shield away.
Step 3: Remove All Remaining 3M Tape Residue
The Key to a Smooth Finish
The remaining foam tape residue is the hardest part. The goal is to safely remove it without scrubbing or scratching the paint.
✔ Warm the remaining tape and use your thumb or an eraser wheel (for large areas) to roll it off the paint where possible.
✔ Apply a citrus or solvent-based adhesive remover (safe for automotive paint) directly to the remaining residue.
✔ Let the remover dwell for 1 to 3 minutes to penetrate and break down the adhesive compound.
✔ Gently wipe the area with a soft microfibre cloth, adding more remover as needed until all residue is gone.
🔹 Pro Tip: Work in small sections, reapplying heat and remover as needed. Patience is essential here!
Step 4: Final Clean and Inspection
Preparing for New Shields or a Clean Look
The final clean removes all chemical residue and prepares the surface for a pristine finish or for new shield installation.
✔ Wipe the entire area thoroughly with Isopropyl Alcohol (IPA) to remove any remaining adhesive remover and oils.
✔ Inspect the paint and window trim carefully to confirm a smooth, residue-free finish.
✔ Australia-Specific Note: Ensure the surface is **completely dry** before proceeding to install new shields, or before exposing the car to dust/rain.
🔹 Quick Reference Checklist: Warm → Separate → Remove Tape → IPA Wipe & Inspect.
Frequently Asked Questions
-
Can I reuse weather shields after removal?
Most cannot be reused. The force required to separate the shield often damages the plastic or the integrity of the shield itself. -
Will the removal damage my car paint?
Not if you follow these steps precisely, using only heat, non-abrasive fishing line, and plastic tools. Damage only occurs when metal tools or excessive force are used. -
How long does the whole removal process take?
Typically, you can safely remove all four shields from a vehicle in about 30 to 60 minutes, with most of the time spent on residue cleanup (Step 3). -
What is the best product to clean up the tape residue?
Automotive adhesive removers like 3M General Purpose Adhesive Cleaner or a quality citrus-based cleaner (like Goo Gone) are effective and safe for modern car paint. -
Can I install new weather shields immediately?
Yes, once the trim is completely clean and dry (free of all residue and cleaning chemicals), the surface is ready for new 3M tape installation.
DIY Confidence: Simple Steps to Install Weather Shields
After your trim is clean, installation is a breeze. Each set includes pre-applied 3M tape and alcohol prep pads. No drilling, no stress - just clean, align, and press. Want a step-by-step walkthrough? Check out our Installation Guide for visual instructions and pro tips.
